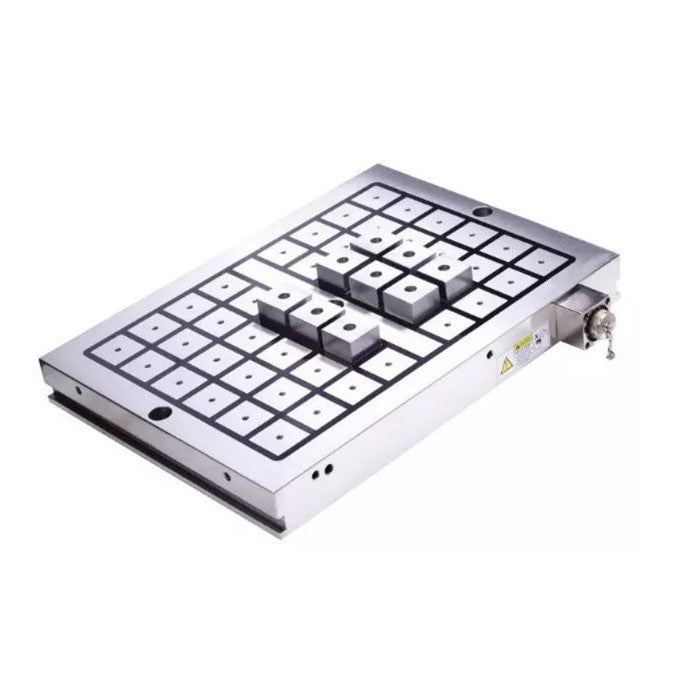

Electro Permanent Magnetic Chuck EP50 304 (436mm x 315mm)

Electropermanent magnetic chuck: EP50 304

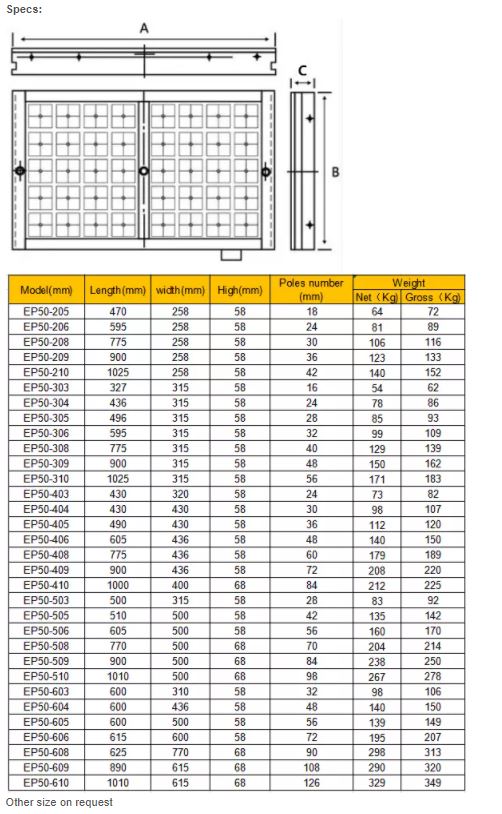

Dimensions: 436 mm x 315 mm x 58 mm
Weight: 78 kg
Number of poles: 24 mm
Pole size: 50x50 mm

• Nominal holding force: 160 - 170 N cm ³

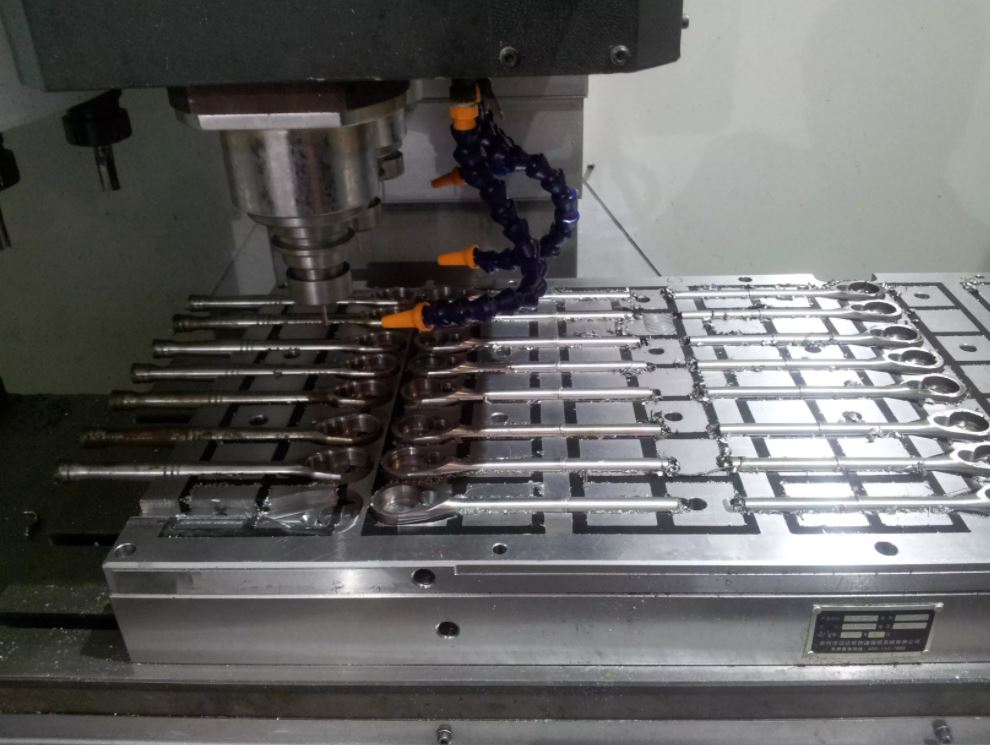

• Usage: Milling and CNC Machining, drilling
• Workpiece: At least 250x250mm and 10 mm thick.
• It is possible to predetermine the force generated by counting the number of poles, workpiece gripping at least 4 pole contact faces.
• Controller do the magnetizing or demagnetizing in 0.5-3 seconds
• Chuck is tested for slipping force, waterproof test, temperature rise test, electrical and demagnetizing test.
• For maximum precision, it is necessary to machine the magnet surface after the magnet installation

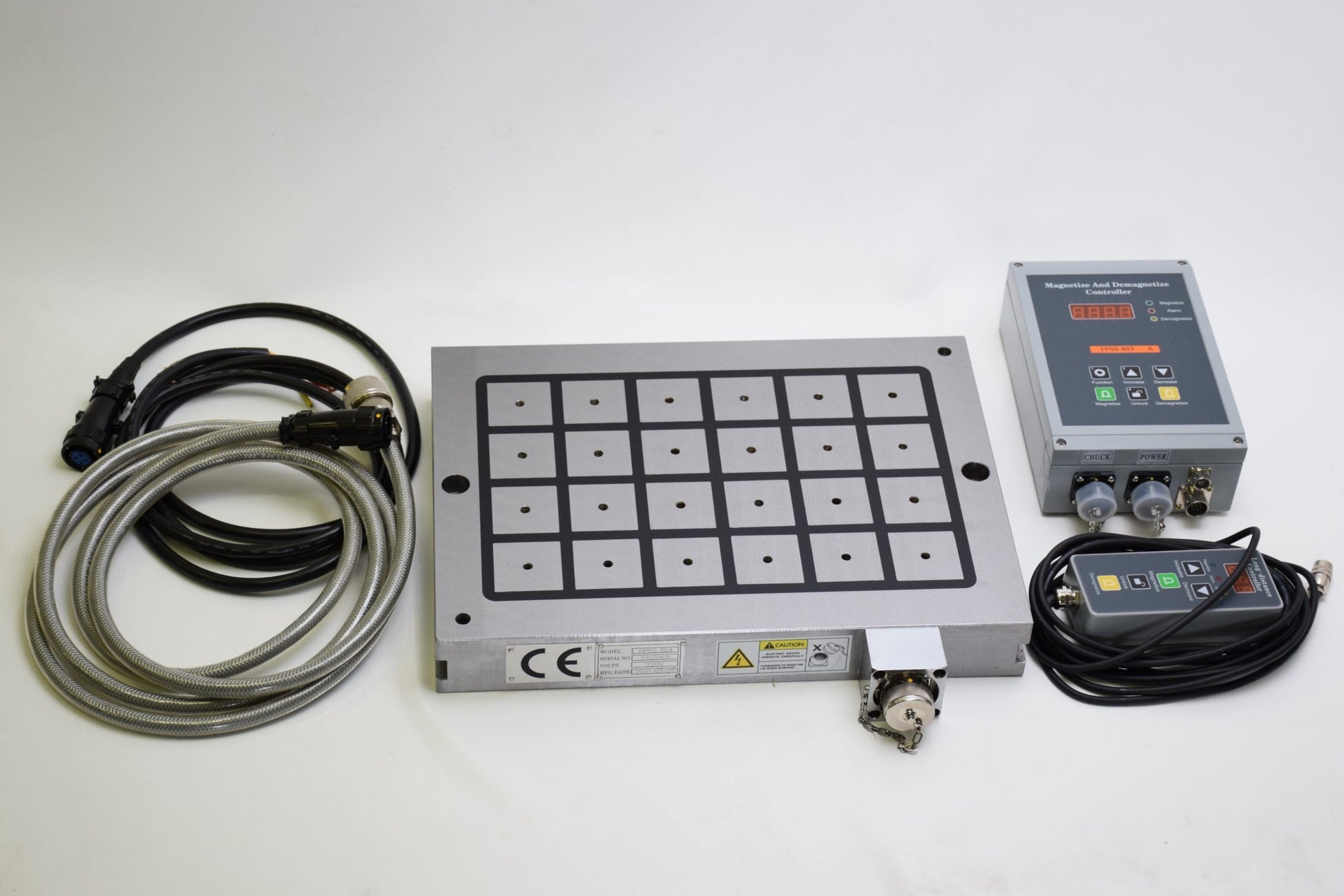

• Controller is included

Standard features and benefits

1. Flexibility:

• Allow single set-up machining with 5-sided accessibility
• workpieces larger than the table are machinable

2. Safety

• No electric power supply during clamping
• Constant and uniform magnetic power over entire area
• No temperature rise in operation has no impact on precision and workpiece deformation due to temperature rise. Can be used for a long time.

3. Efficient

• Easy and quick position, reduce set-up time and increase available machine time.
• High accuracies and tolerances

4. Cost-effective

• no maintenance
• no machine modifications
• reduce tool consumption
