Electro Permanent Magnetic Chuck EP50 503 (500 mm x 315 mm)

Electro Permanent Magnetic Chuck EP50 503 (500 mm x 315 mm)

Regular price 2.028,00 €
Regular price 2.536,00 € Sale price 2.028,00 €
Sale Sold out

CENE SO BREZ DDV.

ZA VSE ARTIKLE, KI JIH NE NAJDETE NA STRANI ALI JIH NI NA ZALOGI, NAS KONTAKTIRAJTE

FOR EU SHIPPING PLEASE CONTACT US. PRICES ARE WITHOUT VAT. IF YOU ARE COMPANY WITH VALID VAT NUMBER FROM EU, PLEASE CONTACT US AND WE WILL NOT CHARGE VAT.

FOR ALL PRODUCTS THAT ARE OUT OF STOCK OR YOU CAN'T FIND THEM ON OUR PAGE, PLEASE CONTACT US.

Electropermanent magnetic chuck: EP50 304

Dimensions: 500 mm x 315 mm x 58 mm
Weight: 83 kg
Number of poles: 28 mm
Pole size: 50x50 mm

  • Nominal holding force: 160 - 170 N/cm 2

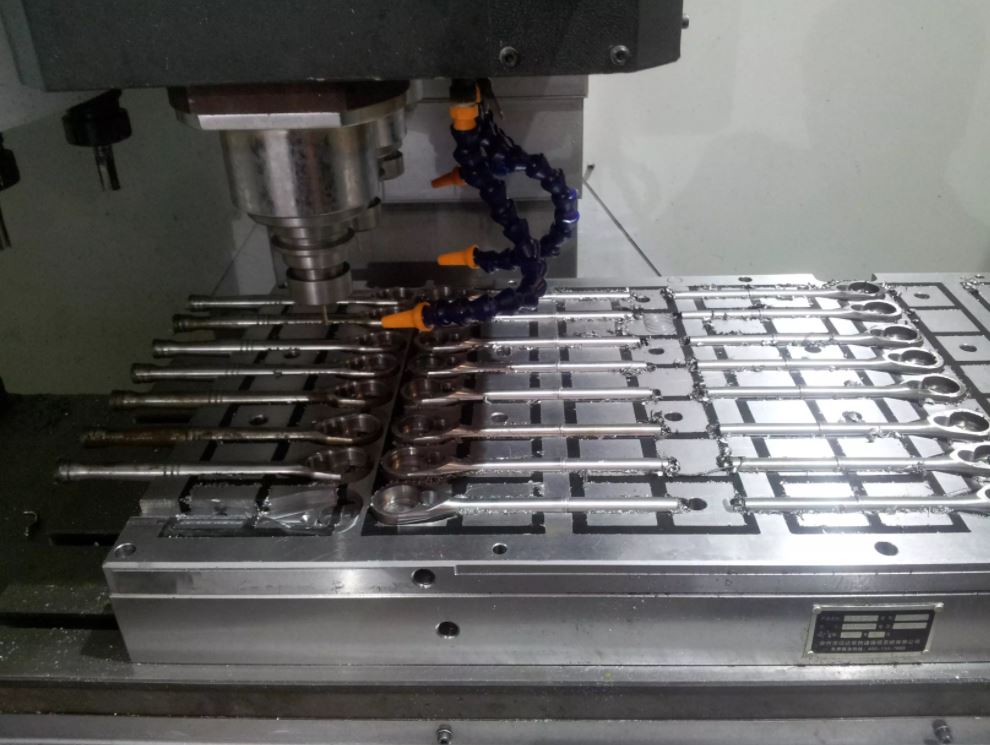

  • Usage: Milling and CNC Machining, drilling
  • Workpiece: At least 250x250mm and 10 mm thick.
  • It is possible to predetermine the force generated by counting the number of poles, workpiece gripping at least 4 pole contact faces.
  • Controller do the magnetizing or demagnetizing in 0.5-3 seconds
  • Chuck is tested for slipping force, waterproof test, temperature rise test, electrical and demagnetizing test.
  • For maximum precision, it is necessary to machine the magnet surface after the magnet installation
  • Controller is included

Standard features and benefits

1. Flexibility:

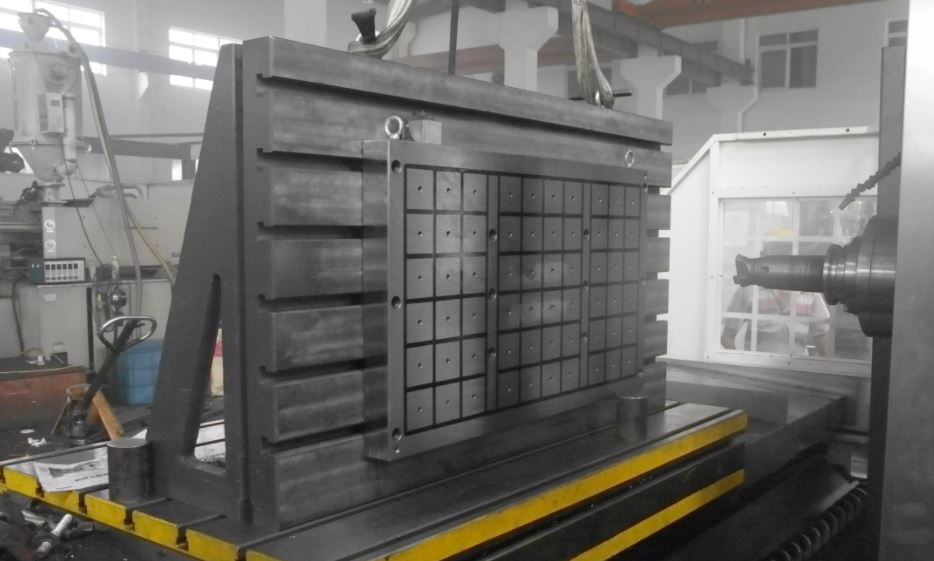

  • Allow single set-up machining with 5-sided accessibility
  • workpieces larger than the table are machinable

2. Safety

  • No electric power supply during clamping
  • Constant and uniform magnetic power over entire area
  • No temperature rise in operation has no impact on precision and workpiece deformation due to temperature rise. Can be used for a long time.

3. Efficient

  • Easy and quick position, reduce set-up time and increase available machine time.
  • High accuracies and tolerances

4. Cost-effective

  • no maintenance
  • no machine modifications
  • reduce tool consumption
