Height Presetter Vertex HP-100

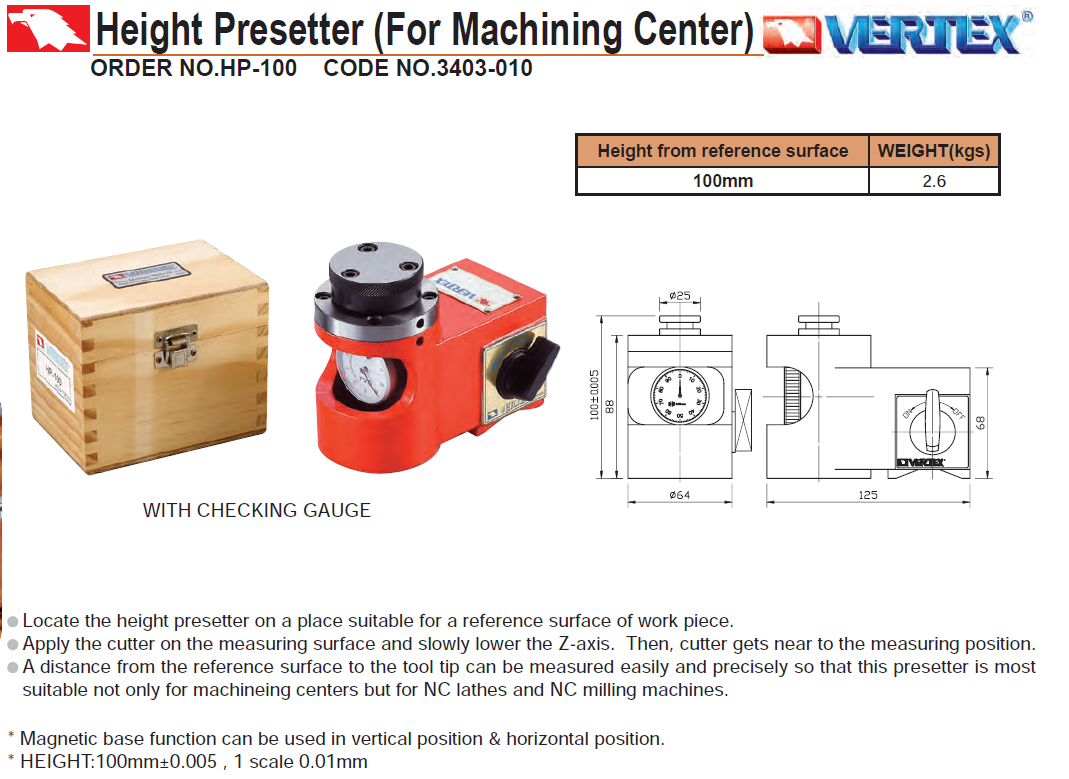

Height Presetter (For Machining Center) Vertex

ORDER NO.HP-100
CODE NO.3403-010

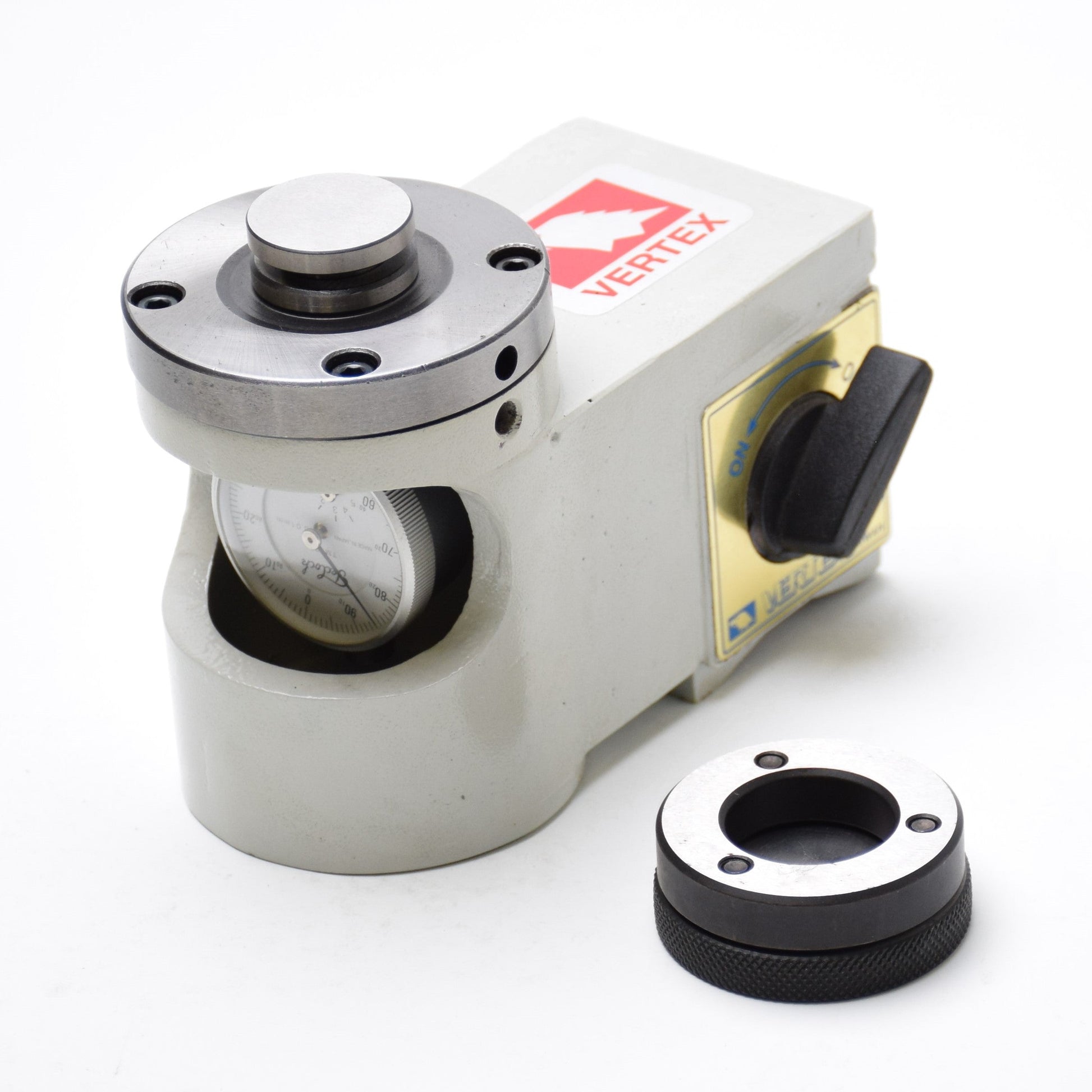

WITH CHECKING GAUGE

• Locate the height presetter on a place suitable for a reference surface of the work piece.
• Apply the cutter on the measuring surface and slowly lower the Z-axis. Then, the cutter gets close to the measuring position.
• A distance from the reference surface to the tool tip can be measured easily and precisely so that this presetter is most suitable not only for machining centers but for NC lathes and NC milling machines.

* Magnetic base function can be used in vertical position & horizontal position.
* HEIGHT: 100mm±0.005, 1 scale 0.01mm
