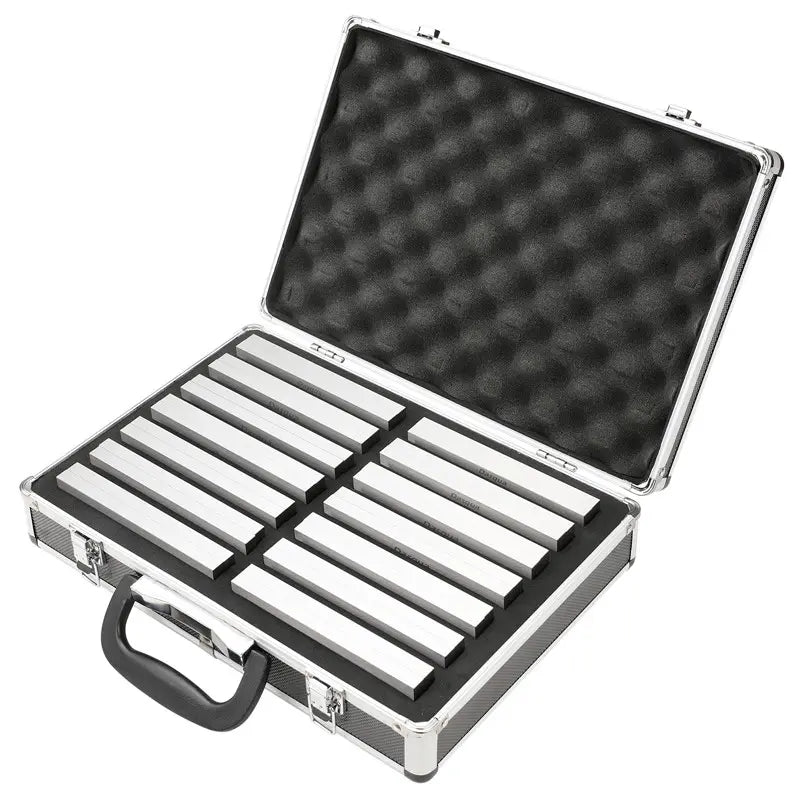

Premium Parallel Set With Alu. Case 14 Pairs*10 mm*150mm*(14-50mm)

8203-0010

Premium Parallel Set With Alu. Case 14 Pairs•10 mm*150mm*(14-50 mm)(14,16,18,20,22,24,26,28,30,32,35,40,45,50 mm)

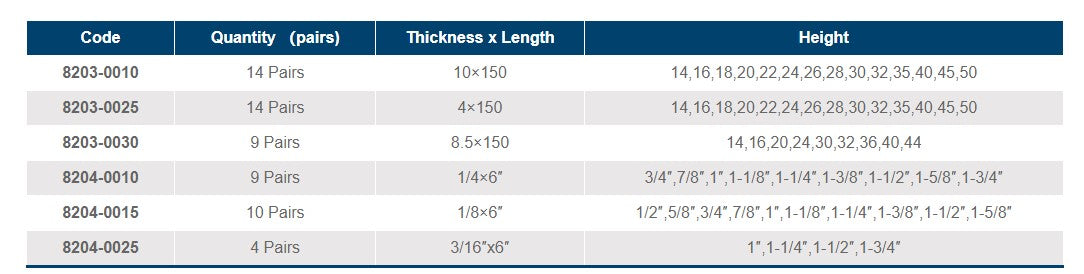

Specifications

Product Name: Premium Parallel Set
Item Number: 8203-0010
Amount (Pairs): 14
Length: 150mm
Thickness: 10mm
Height: 14,16,18,20,22,24,26,28,30,32,35,40,45,50
Warranty: Two Years

Features

• Premium alloy steel, hardened and quenched, hardness of 58-63HRC, long service life
• Edges are slightly lapped for anti-collision.
• Fitted black aluminum case
• Precision ground with high accuracy: height/width ±0.01mm, parallelism ±0.005mm, use in pairs: ±0.01mm (height/thickness) and each parallel set is provided with its own inspection report
• Round chamfer to protect operators' hands from scratches

Application

The parallel bars have precision dimensions and precision parallels and precision squareness. Simple and easy to use in precision clamping of parts in drilling, boring, milling, printing, assembly work, etc. for clamping a group of flat workpieces.

Advantage Of DASQUA

• High quality material and precision machining process ensure product quality；
• A traceable QC system is worthy of your trust；
• Efficient warehouse and logistics management ensure your delivery time；
• A two-year warranty makes you without the worries behind；

Package Content

1 x Premium parallel set
